Solar Tracker Bearing

GF Bearing is a high-performance bearing solution specially designed for solar photovoltaic tracking systems. Engineered with advanced materials and optimized structure, it ensures smooth rotation, high load capacity, and long-term maintenance-free operation, making it a critical component for accurate and reliable solar tracking.

GF Bearings Specifications

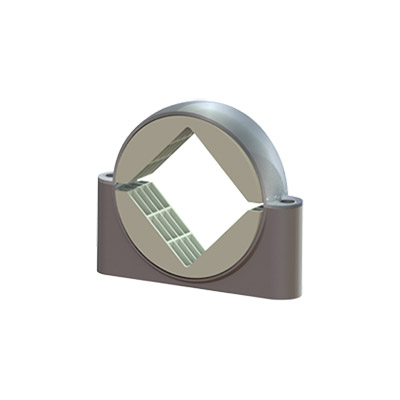

Housing: Aluminum

Bearing: Self-lubricating material

A100 For tube size: 100×100 mm

A120 For tube size: 120×120 mm

Maximum pivot angle: ±10°

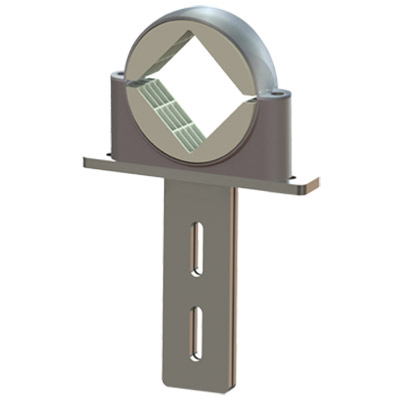

Housing: Aluminum

Bearing: Self-lubricating material

T-Shape base: Hot-dip galvanized steel

A100 For tube size: 100×100 mm

A120 For tube size: 120×120 mm

Maximum pivot angle: ±10°

Housing: Zn-Al-Mg + Aluminum

Bearing: Self-lubricating material

ZA100 For tube size: 100×100 mm

ZA120 For tube size: 120×120 mm

Maximum pivot angle: ±10°

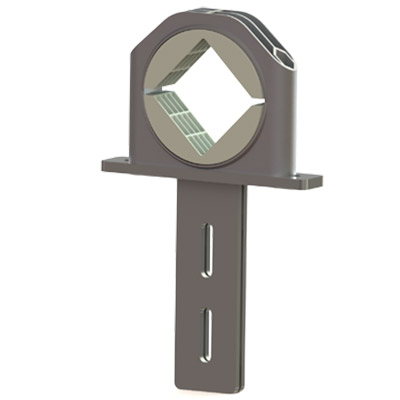

Housing: Zn-Al-Mg + Aluminum

Bearing: Self-lubricating material

T-Shape base: Hot-dip galvanized steel

ZA100A For tube size: 100×100 mm

ZA120A For tube size: 120×120 mm

Maximum pivot angle: ±10°

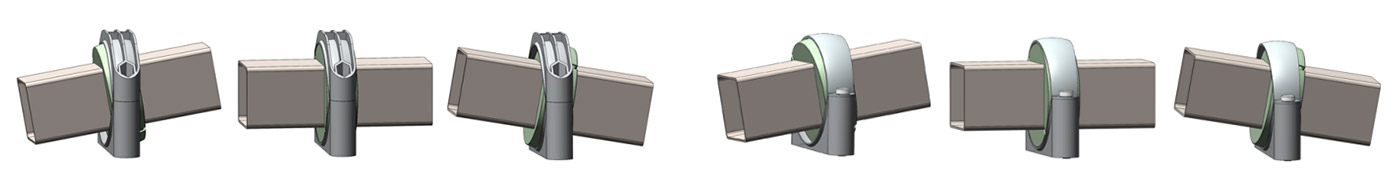

Adaptability

Key Features & Advantages

High Load Capacity

Designed to withstand heavy static and dynamic loads from PV modules, wind, and snow, ensuring stable operation of large-scale solar trackers.

Maintenance-Free, Self-Lubricating Design

Made with advanced self-lubricating materials, eliminating the need for regular greasing and significantly reducing operation and maintenance costs.

Excellent Environmental Resistance

Resistant to UV radiation, corrosion, high temperatures, dust, and humidity, suitable for deserts, coastal areas, and other harsh outdoor environments.

Lightweight and High-Strength Structure

Aluminum alloy housing reduces system weight while maintaining high mechanical strength, improving tracker responsiveness and overall system efficiency.

Optimized Curved Contact Surface

The specially designed curved bearing surface prevents displacement caused by vibration or axial forces and compensates for minor installation tolerances, ensuring smooth and stable rotation.

Product Range

GF Bearing is available in multiple sizes and configurations to meet different tracker system requirements, with options including aluminum housing, galvanized steel, and Zn-Al-Mg coated structures. Customization is available upon request.

Applications

GF Bearing is widely used in:

● Single-axis solar tracking systems

● Utility-scale photovoltaic power plants

● Commercial and industrial solar installations

● Projects operating in extreme environmental conditions

By ensuring precise and reliable rotational movement, GF Bearing helps improve tracking accuracy, reduce system failure rates, and maximize energy yield.

Why Choose GF Bearing?

● Long service life with minimal maintenance

● High reliability under extreme loads and climates

● Optimized design for solar tracking applications

● Reduced lifecycle cost of solar tracking systems

● Proven performance in large-scale PV projects

GF Bearing is not just a mechanical component — it is a key enabler of efficient, durable, and high-performance solar tracking systems.

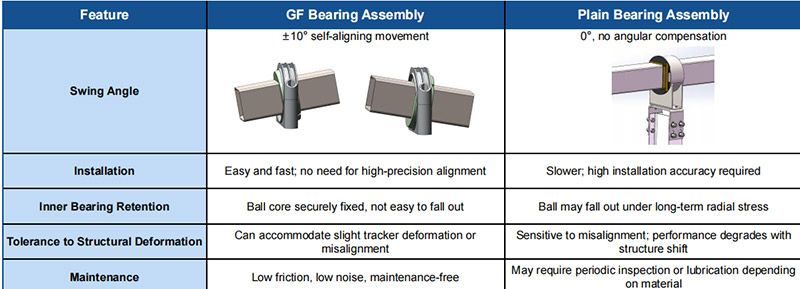

Feature

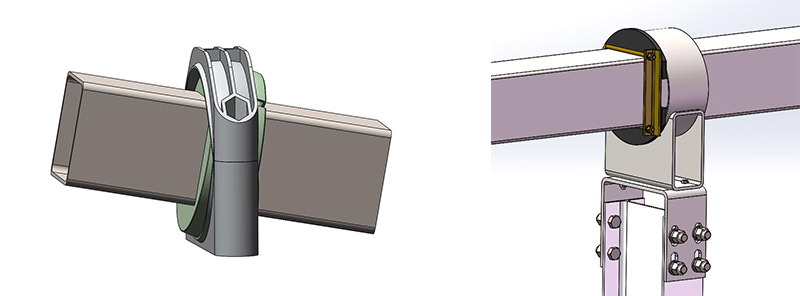

GF Bearing Assembly

Plain Bearing Assembly

Swing Angle

±10° self-aligning movement

0°, no angular compensation

Installation

Easy and fast; no need for high-precision alignment

Slower; high installation accuracy required

Inner Bearing Retention

Ball core securely fixed, not easy to fall out

Ball may fall out under long-term radial stress

Tolerance to Structural Deformation

Can accommodate slight tracker deformation or misalignment

Sensitive to misalignment; performance degrades with structure shift

Maintenance

Low friction, low noise, maintenance-free

May require periodic inspection or lubrication depending on material


GF Bearing is not just a mechanical component — it is a key enabler of efficient, durable, and high-performance solar tracking systems.

Feature

GF Bearing Assembly

Plain Bearing Assembly

Swing Angle

±10° self-aligning movement

0°, no angular compensation

Installation

Easy and fast; no need for high-precision alignment

Slower; high installation accuracy required

Inner Bearing Retention

Ball core securely fixed, not easy to fall out

Ball may fall out under long-term radial stress

Tolerance to Structural Deformation

Can accommodate slight tracker deformation or misalignment

Sensitive to misalignment; performance degrades with structure shift

Maintenance

Low friction, low noise, maintenance-free

May require periodic inspection or lubrication depending on material

• Housing: Zn-Al-Mg + Aluminum
• Bearing: Polymer wear-resistant material
• For tube size: 100×100 mm,      120×120 mm Maximum
• pivot angle: ±10°
• Optional core: L-shape/U-shape
